Guralp 지진계

  • Guralp 지진계 > 6시리즈 지진계

    제품용도 지진계(portable, medium motion)
    제조사 Guralp Systems
    • - Compact, medium-motion broadband seismometer with analog output and 30 s to 100 Hz response

      - Medium motion analogue seismometer
      - Force feedback broadband instrument
      - Lifting handle and all connectors on the top of the instrument
      - Waterproof and durable with O-ring seals throughout
      - Rapid, easy singlehanded installation

      *본 장비를 대체할 ‘CERTIMUS’ 라는 단주기 속도계가 출시되었습니다. 자세한 사항은 문의 부탁드립니다


Guralp Systems

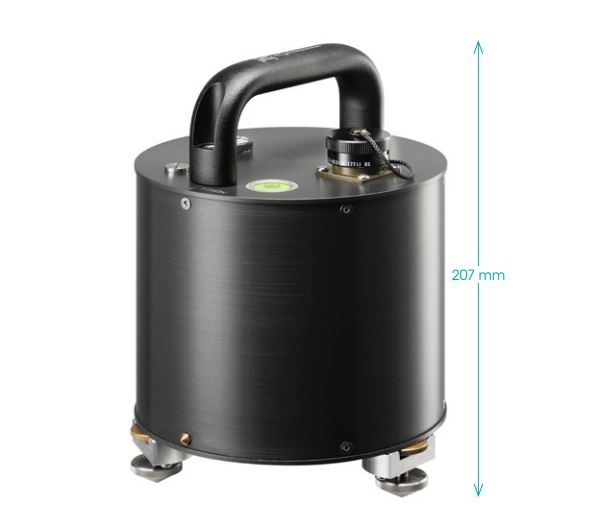

모델명 : 6T

제품용도 : 지진계(portable, medium motion)




•Configuration / Topology: Triaxial orthogonal (ZNE)
•Feedback: Force feedback.



•Response: 30 s to 100 Hz standard (other options available)
•Output sensitivity / Clip Level: 2 x 1200 V/ms-1 (other options available)
•Peak / Full scale output: Three channels - ±20 V (40 V peak-to-peak) differential
•Cross axis rejection: >65 dB
•Linearity: >90 dB
•Lowest spurious resonance: >450 Hz



•Type: Pulse, sine wave and broadband
•Calibration controls: Common signal & enable lines exposed on sensor connector



•Locking: No mass locking required
•Mass recentring range: ±3° from horizontal



•Mass control / locking: Remote offset zeroing



•Analogue output: military specification bayonet connector



•power voltage range : 10-30VDC

•power consumption : 0.46W(without GPS or Ethernet)



•Operating temperature: -40 to 75°C

•Operating humidity: 0 to 100%

•Enclosure ingress protection: IP68

•Weight: 2.49kg?

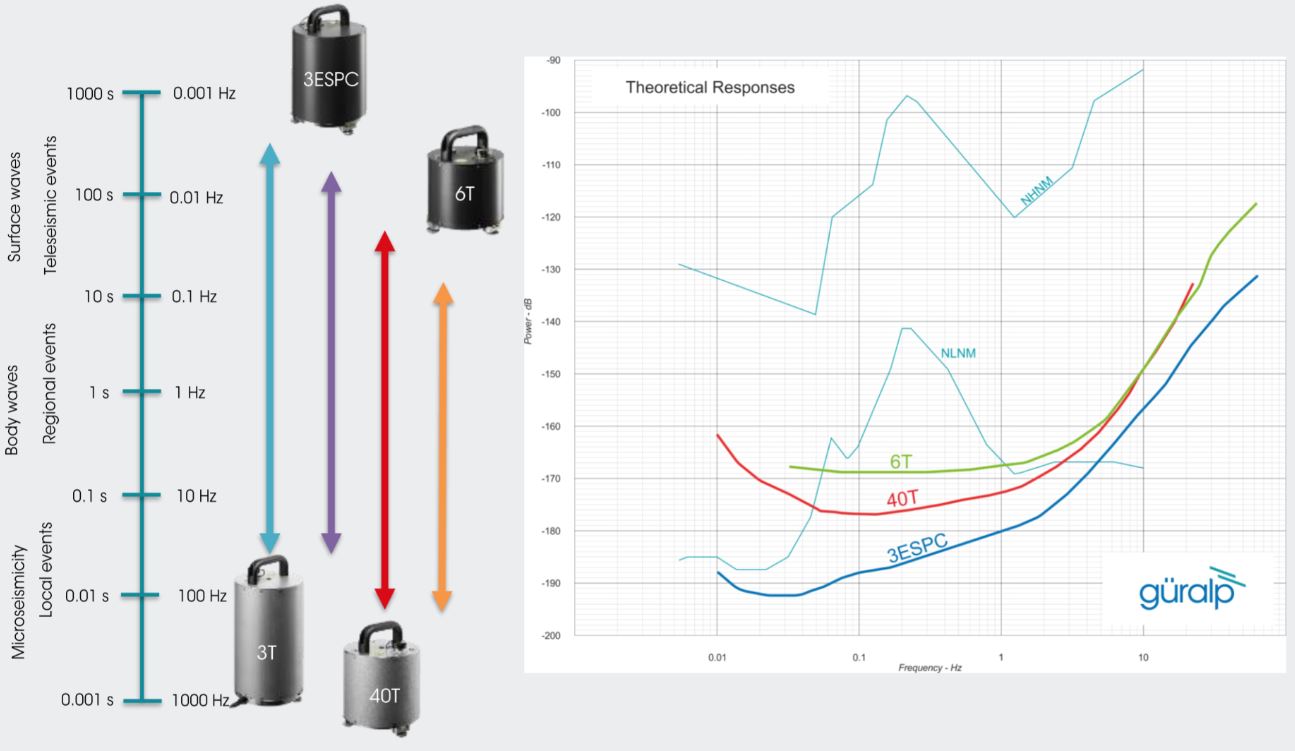

▶지진계 모델별 주파수 범위 및 노이즈 자료


6T 6T 카탈로그 (영문)
