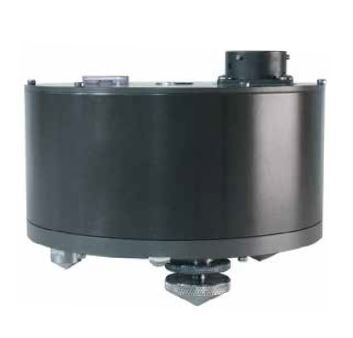

    5TC
    제품용도 가속도계(Strong Motion Accelerometer)
    제조사 Guralp Systems
    비고
    • - High performance, low noise, compact, broadband - accelerometer with integrated digitiser and DC-100Hz response

      - Compact digital accelerometer with acquisition module
      - Force feedback broadband instrument
      - Lifting handle and all connectors on the top of the instrument.
      - Waterproof and durable with O-ring seals throughout
      - Simple installation with a single fixing bolt

상세정보

Guralp Systems

모델명 : 5TC

제품용도 : 가속도계(Strong Motion Accelerometer)

가속도계(strong motion)

SYSTEM

Configuration / Topology: Triaxial orthogonal (ZNE)
Feedback: Force feedback.



SENSOR PERFORMANCE

Acceleration band: DC – 100 Hz standard (other options available)
Output sensitivity / Clip Level: 2 g
Peak / Full scale output: Three channels - ±20 V (40 V peak-to-peak) differential
Cross axis rejection: 0.001 g/g
Linearity: 0.1 % full scale
Lowest spurious resonance: >450 Hz
Self-noise: < 1 ug rms

Dynamic range:
147 dB @ 0.1 Hz
151 dB @ 1 Hz
146 dB for 5 Hz



CALIBRATION

Type: Pulse, sine wave and broadband
Calibration controls: Independent signal & enable lines exposed on sensor connector



CONTROL

Mass control / locking: Remote offset zeroing



*See EAM and CD24 digitiser datasheets for further details
