지진계
-
-
5U
제품용도 가속도계(Sigle Axis Feedback Accelerometer) 제조사 Guralp Systems 비고 - - High performance, low noise, compact, broadband accelerometers
- Single axis accelerometer
- Force feedback broadband instrument
- Lifting handle and all connectors on the top of the instrument.
- Waterproof and durable with O-ring seals throughout
- Simple installation with a single fixing bolt
- - High performance, low noise, compact, broadband accelerometers
상세정보
Guralp Systems

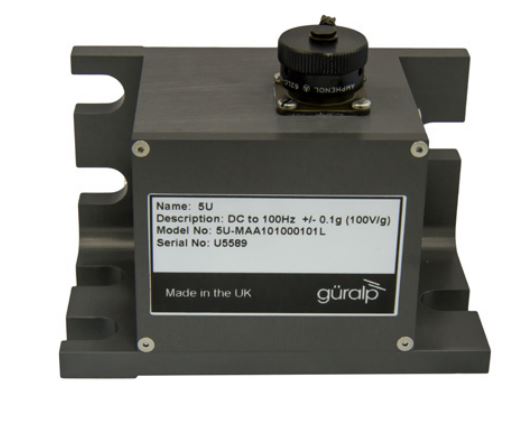

모델명 : 5U
제품용도 : 가속도계(Sigle Axis Feedback Accelerometer)
5U
▶SYSTEM
•Configuration / Topology: Triaxial orthogonal (ZNE)
•Feedback: Force feedback.
▶PERFORMANCE
•Acceleration band: DC – 100 Hz standard (other options available)
•Output sensitivity / Clip Level: 2 g standard
•Peak / Full scale output: Three channels - ±20 V (40 V peak-to-peak) differential
•Cross axis rejection: 0.001 g/g
•Linearity: 0.1 % full scale
•Lowest spurious resonance: >450 Hz
•Self-noise: < 1 ug rms
•Dynamic range:
•147 dB @ 0.1 Hz
•151 dB @ 1 Hz
•146 dB for 5 Hz
▶CALIBRATION
•Type: Pulse, sine wave and broadband
•Calibration controls: Independent signal & enable lines exposed on sensor connector
▶CONTROL
•Mass control / locking: Remote offset zeroing
다운로드
| 5U | 5U 카탈로그 | |
| 5U_한글 | 5U 카탈로그 |
