지진계
-
-
5TB
제품용도 시추형 가속도계(Borehole Accelerometer) 제조사 Guralp Systems 비고 - - Borehole accelerometer with analog output(5T sensor inside)
- Can be combinded with a DM24 borehole digitiser or a surface digitiser
- Supplied with surge protection and a strain relief mechanism to isolate the sensors in the instrument from motions in the cable
- Force feedback broadband instrument
- - Borehole accelerometer with analog output(5T sensor inside)
상세정보
Guralp Systems

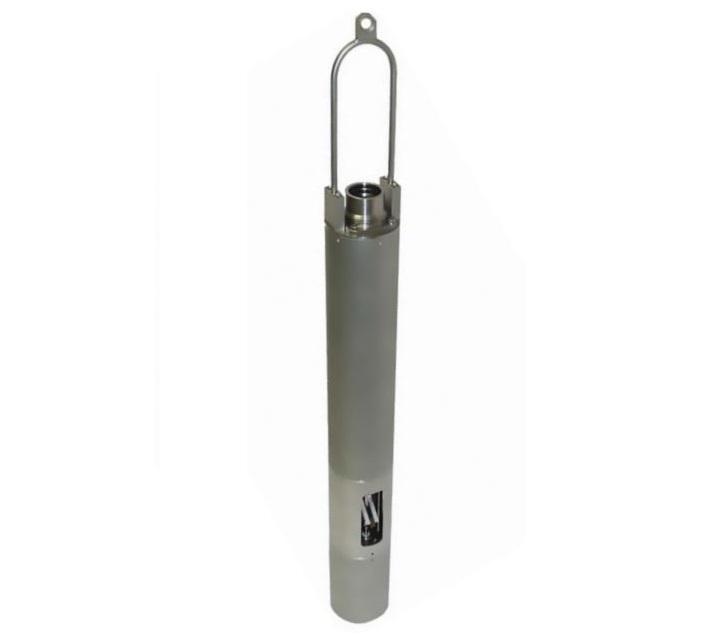

모델명 : 5TB
제품용도 : 시추형 가속도계(Borehole Accelerometer)
5TB
▶SYSTEM
•Configuration / Topology: Triaxial orthogonal (ZNE)
•Feedback: Force feedback.
▶SENSOR PERFORMANCE
•Acceleration output band: DC – 100 Hz (DC - 200Hz option available)
•Output sensitivity / Clip Level: 2 g standard, other solution available
•Peak / Full scale output: Three channels - ±20 V (40 V peak-to-peak) differential
•Cross axis rejection: 0.001 g/g
•Offset zeroing: via remote control
•Lowest spurious resonance: >400 Hz
•Self-noise below NHNM: >0.08 Hz(12.5 s)
•Dynamic range:
•156 dB
•140 dB @ 20 - 200 s
•146 dB @ 2 - 30 Hz
▶CALIBRATION
•Type: Pulse, sine wave and broadband
•Calibration controls: Independent signal & enable lines exposed on sensor connector
▶POWER
•power voltage range : 10-36VDC
•power consumption : 3.5W
▶PHYSICAL/ENVIRONMENTAL
•Operating temperature: -20 to 65°C
•Diameter: 76mm
•Case height with lifting loop: 431mm
•Enclosure/Materials: Hard anodised aluminum case, Gold plated contacts, O-ring seals throughout
•Borehole diameter: 82mm to 120mm
•Borehole install depth: up to 250m (other option available)
•Borehole install mechanism: Spring-loaded jaw with passive skids or studs(>60kg force)
▶SYSTEM
•Configuration / Topology: Triaxial orthogonal (ZNE)
•Feedback: Force feedback.
다운로드
| 5TB | 5TB 카탈로그 (영문) |
