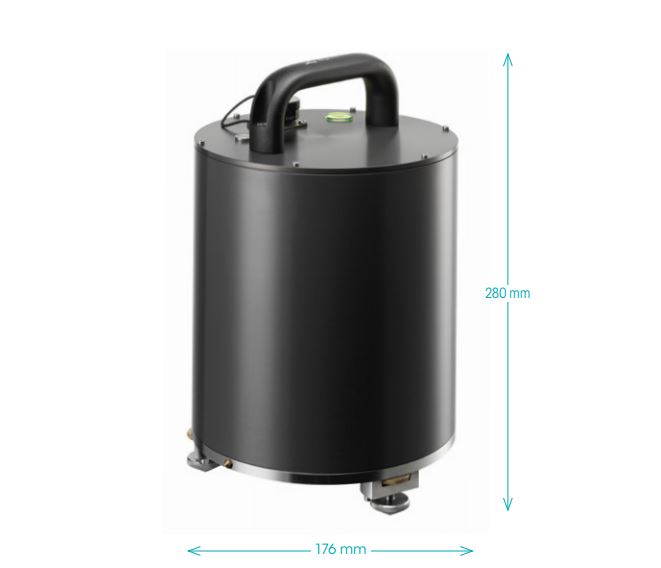

    3ESPCD
    제품용도 지진계(Weak Motion Seismometer)
    제조사 Guralp Systems
    비고
    • - High performance, low noise, broadband seismometer with analog output and 60 s - 100 Hz response

      - Force feedback broadband instrument
      - Lifting handle and all connectors on the top of the instrument
      - Waterproof and durable with O-ring seals throughout
      - Quick and easy singlehanded installation

상세정보

Guralp Systems

모델명 : 3ESPCD

제품용도 : 지진계(Weak Motion Seismometer)

3ESPCD

SYSTEM

Configuration / Topology: Triaxial orthogonal (ZNE)
Feedback: Force feedback



SENSOR PERFORMANCE

Response: 60 s - 100 Hz ( option 120 s to 100 Hz )
Output sensitivity / Clip Level:  2000 V/ms-1 (2 x 1000 V/ms-1, other options available)

Peak / Full scale output: Three channels - ±20 V (40 V peak-to-peak) differential
Cross axis rejection: >62 dB
Linearity: >107 dB horizontal, >111 dB vertical
Lowest spurious resonance: 140 Hz (vertical)
Self-noise below NLNM(New Low Noise Model: Peterson, 1993, USGS): 30 s(0.03 Hz) to 16 Hz

Sensor Dynamic range: >140 dB



CALIBRATION

Type: Pulse, sine wave and broadband
Calibration controls: Independent signal & enable lines exposed on sensor connector

MASS / MASS MONITORING

Locking: Remote or automatic mass locking, unlocking and centring
Operating tilt range: +/-2.5° from horizontal



CONTROL

Mass control / locking: Lock, unlock, centre



CONNECTIONS

Analogue output: 26-pin military specification bayonet connector



POWER

power voltage range : 10-36VDC

power consumption : 0.75W



PHYSICAL/ENVIRONMENTAL

Operating temperature: -20 to 65°C

Operating humidity: 0 to 100%

Enclosure ingress protection: IP68

Weight: 8.4kg



지진계 모델별 주파수 범위 및 노이즈 비교 자료

다운로드

3ESPCD 3ESPCD 카탈로그 (영문)
