제품용도 | 가속도계+기록계 일체형 |
---|---|
제조사 | Guralp Systems |
비고 |
|
Guralp Systems
모델명 : FORTIS
제품용도 : 가속도계(Smart Strong Motion Digital Accelerometer)
FORTIS
•구성: 3축(ZNE)
•Feedback: Force feedback.
•응답 주파수: DC – 315Hz
•Gain 스위치 옵션: ±4 g, ±2 g, ±1 g or ±0.5 g
•Sensor Dynamic Range: > 160dB
•한계 측정 범위(Clip level): 4.2 g
•Peak / Full scale output: Three channels - ±20 V (40 V peak-to-peak) differential
•Cross axis rejection: 0.001 g/g
•선형성(Linearity): 0.1 % full scale
•Lowest spurious resonance: >450 Hz
•Self-noise below NHNM: > 0.07 Hz (14 seconds)
•Self-noise below AHNM: DC - 100Hz
•Self-noise below ALNM: 0.8 - 45Hz
•Dynamic range: > 160 dB
▶CALIBRATION(auto calibration 기능)
•Calibration controls: Independent signal & enable lines exposed on sensor connector
•CONTROL
•Mass control / locking: Remote offset zeroing
▶전원
•입력 전압 범위 : 10-36VDC
•소비 전력 : 2 W (no Ethernet or Ethernet)
▶물리적/환경 특성
•동작 온도: -20 to 70°C
•방수 성능(standard): IP68
•무게(standard): 1.9 kg

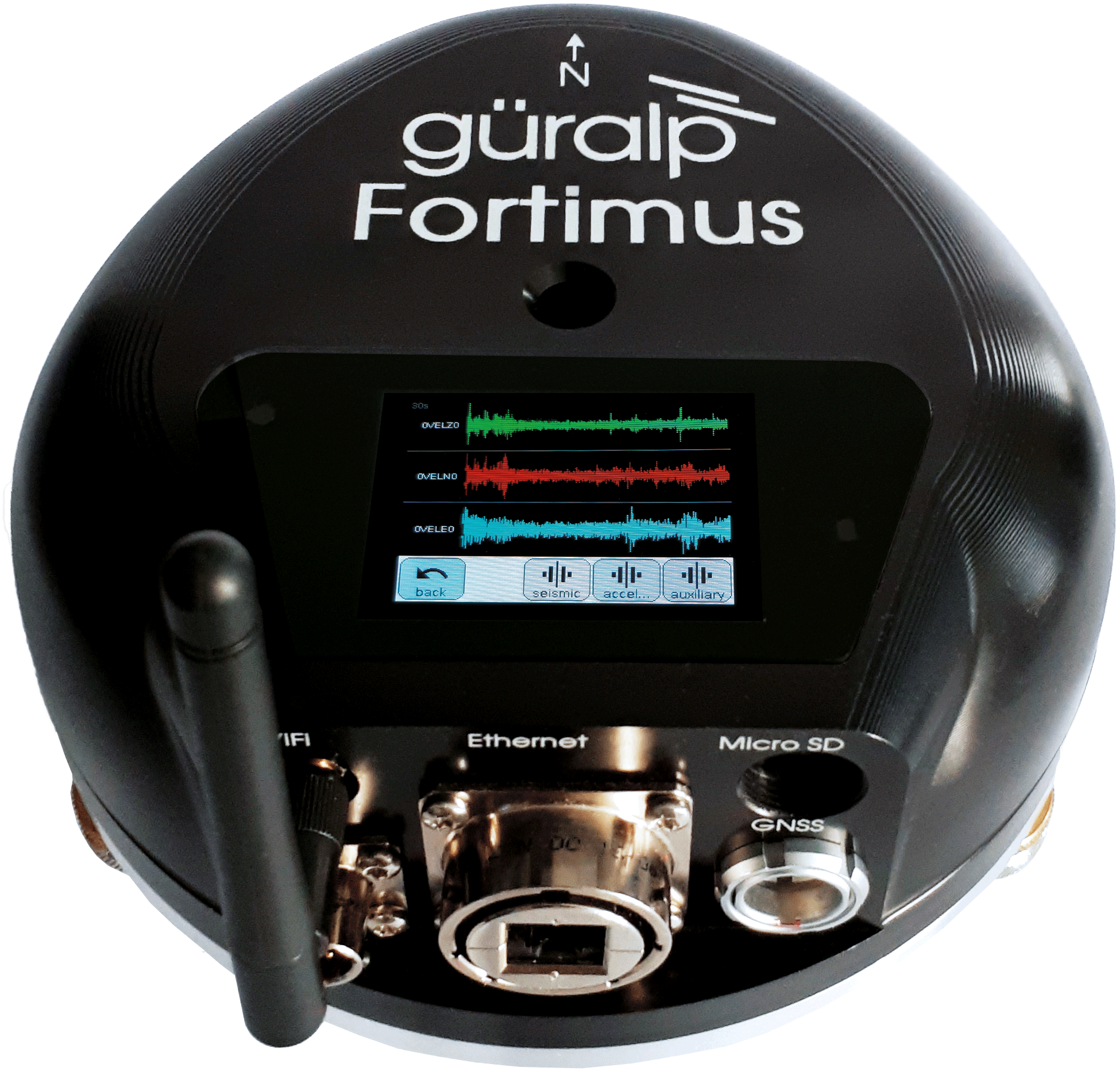

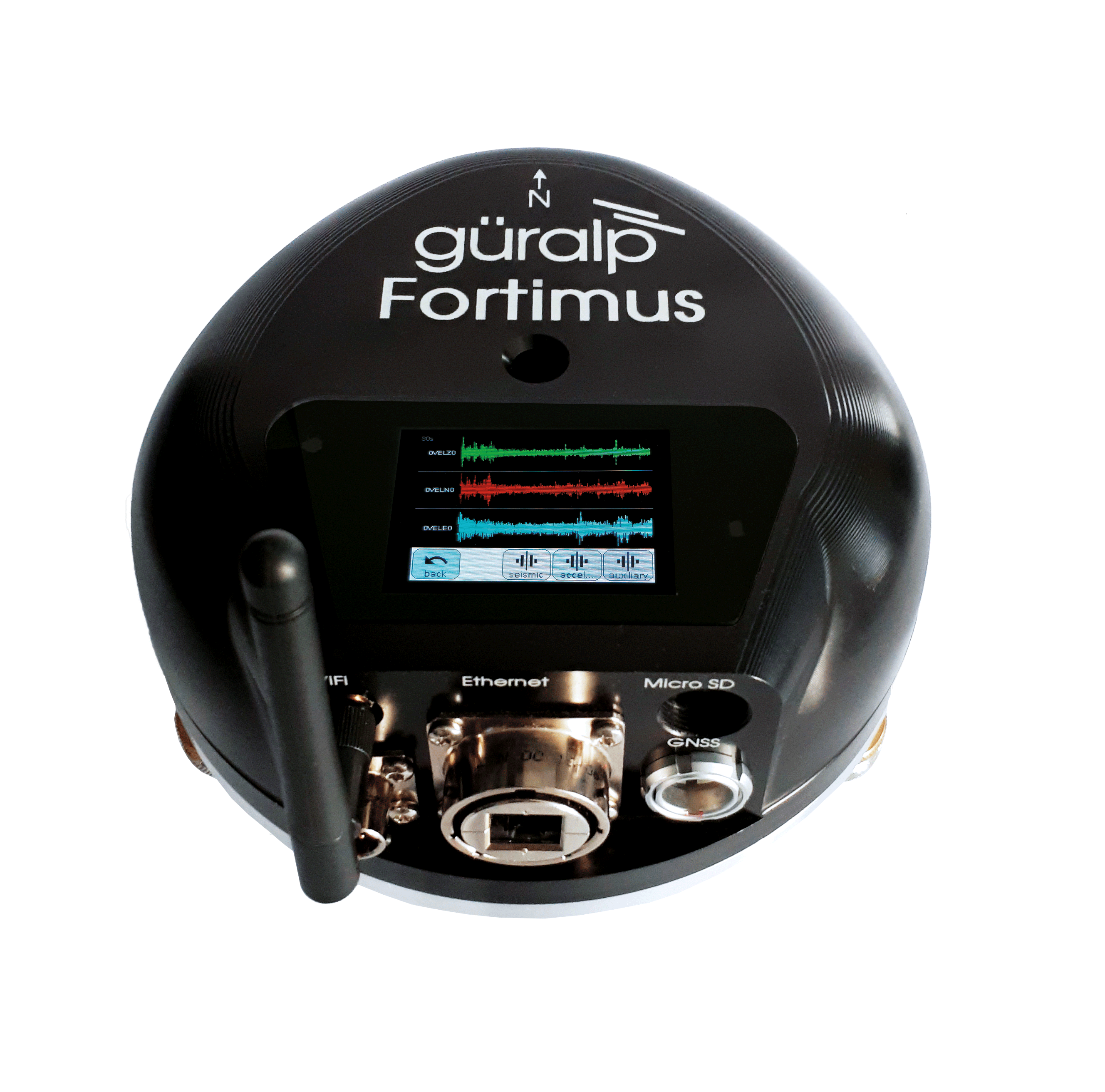

Fortimus | 스마트 가속도계 카탈로그 |
